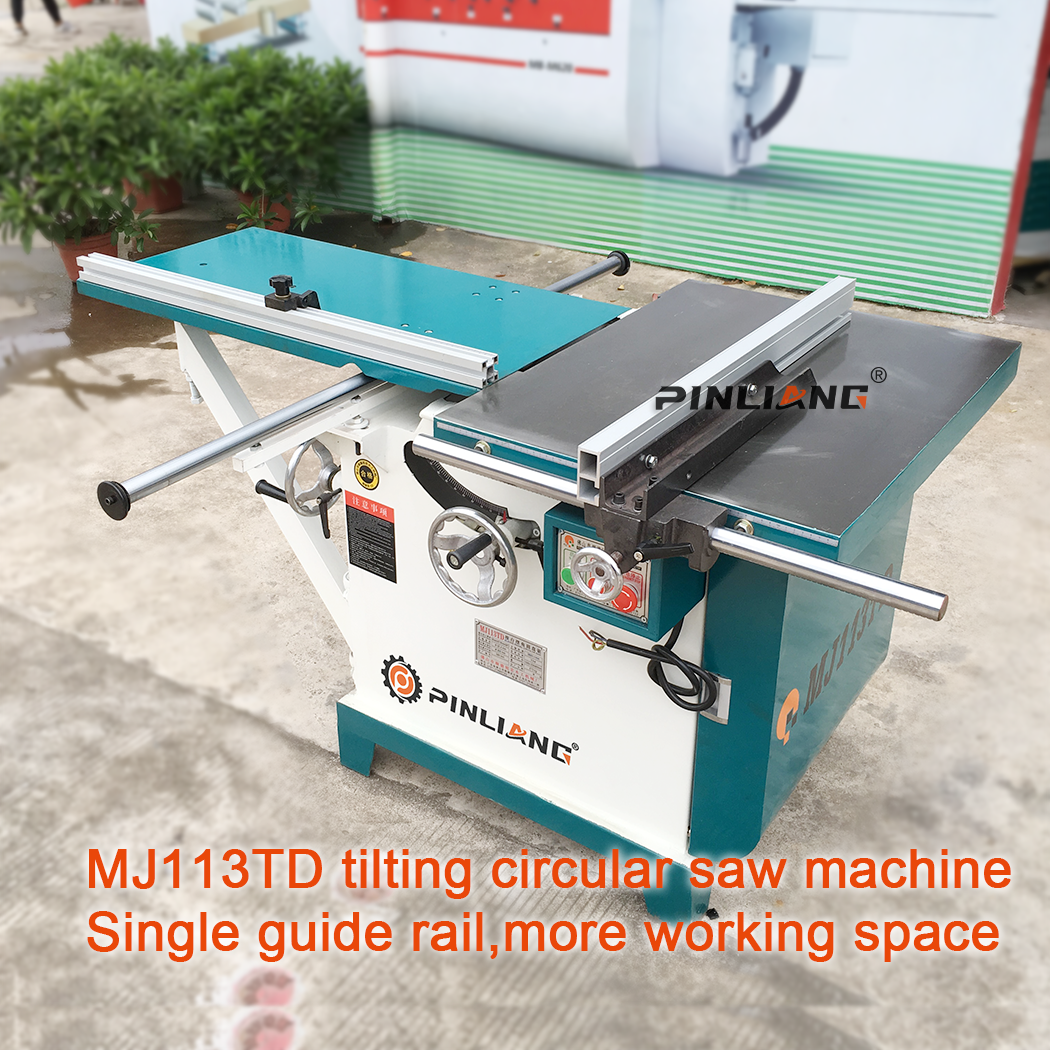

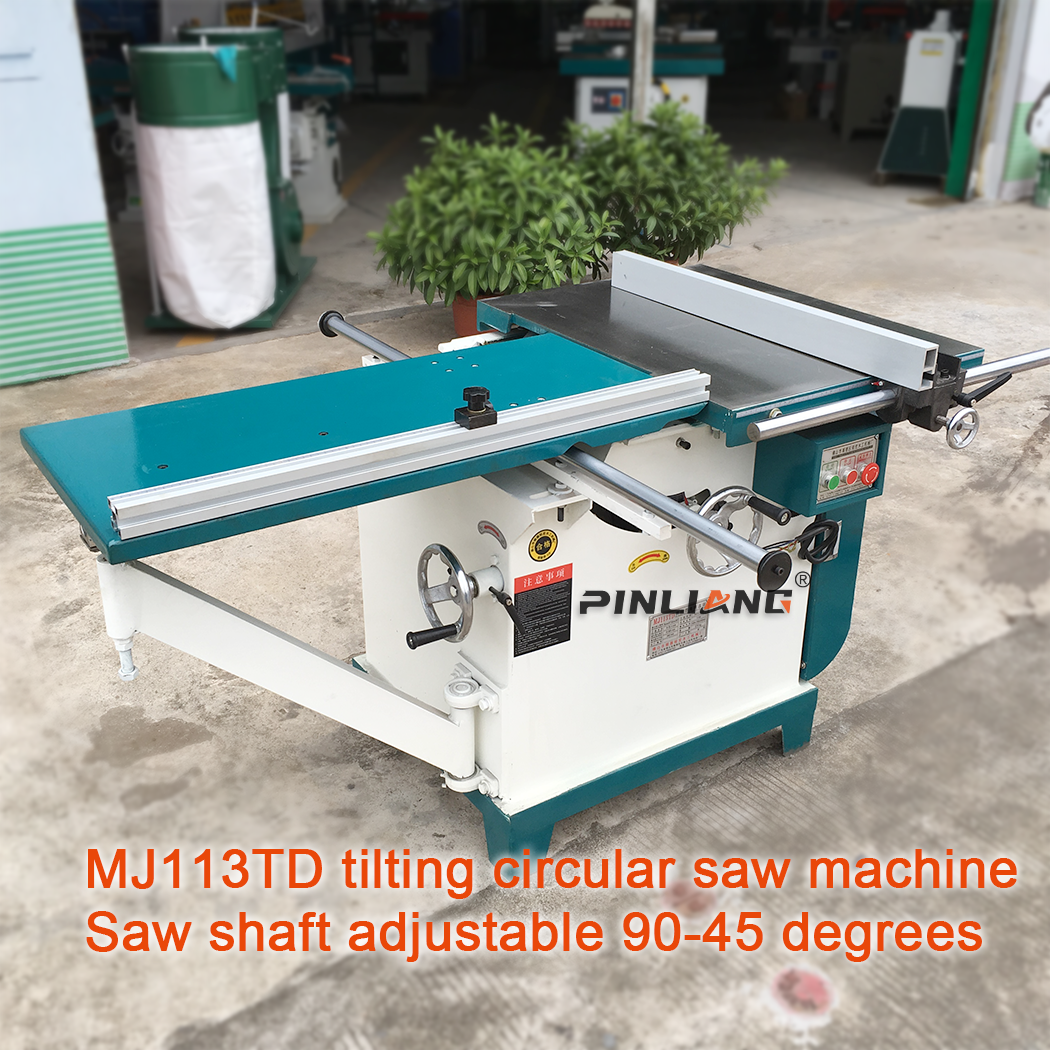

PINLIANG Spindle tilting 45-90 degree wood cutting machine MJ113TD tilting circular saw machine with sliding table

Home

Wood is in Our Blood , Wood is Our World

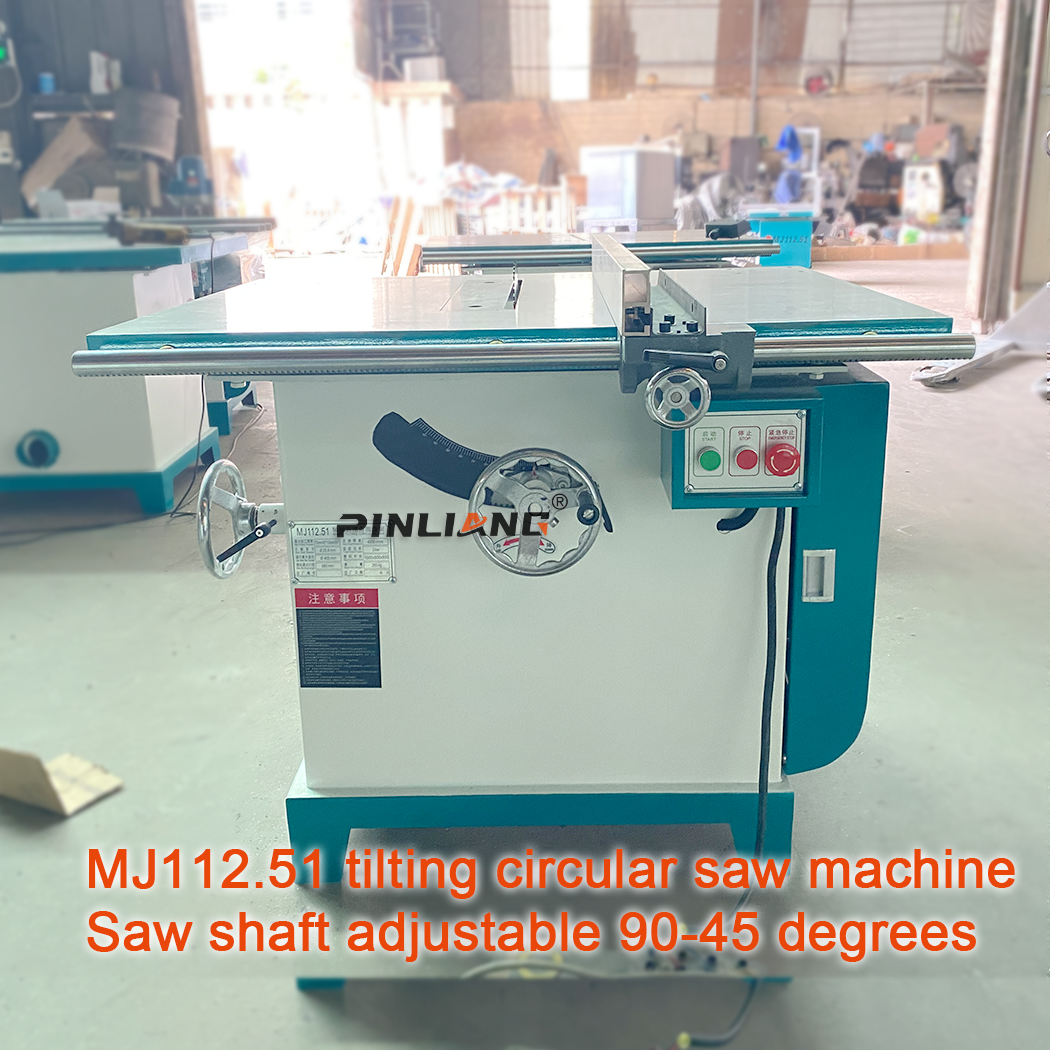

Saw shaft adjustable 90-45 degrees

The positioning baffle adopts a gear and rack structure, which can be adjusted easily and quickly

Noise dampening system for quiet operation

Model	MJ113TD	MJ113TB	MJ112.51
Spindle shaft rotation	4200r/min	4200r/min	4200r/min
Spindle shaft dia.	25.4mm	25.4mm	25.4mm
Saw blade max. dia.	405mm	405mm	405mm
Max. process thickness	90mm(45)/145mm(90)	80mm(45)/130mm(90)	70mm(45)/100mm(90)
Max. working length	680mm	680mm	680mm
Total power	3kw	3kw	3kw
Overall size	15001250920mm	13001250900mm	1000800850mm
Weight	270kgs	270kgs	280kgs
if this parameter don't meet your needs. Please contact us, we have other models and we also can provide customized services.
